Oil Field Explosion Proof Led Flood Light With Aluminum Housing AC220V / 50Hz

    Buy cheap Oil Field Explosion Proof Led Flood Light With Aluminum Housing AC220V / 50Hz from wholesalers

    Buy cheap Oil Field Explosion Proof Led Flood Light With Aluminum Housing AC220V / 50Hz from wholesalers
    • Buy cheap Oil Field Explosion Proof Led Flood Light With Aluminum Housing AC220V / 50Hz from wholesalers
    • Buy cheap Oil Field Explosion Proof Led Flood Light With Aluminum Housing AC220V / 50Hz from wholesalers
    • Buy cheap Oil Field Explosion Proof Led Flood Light With Aluminum Housing AC220V / 50Hz from wholesalers

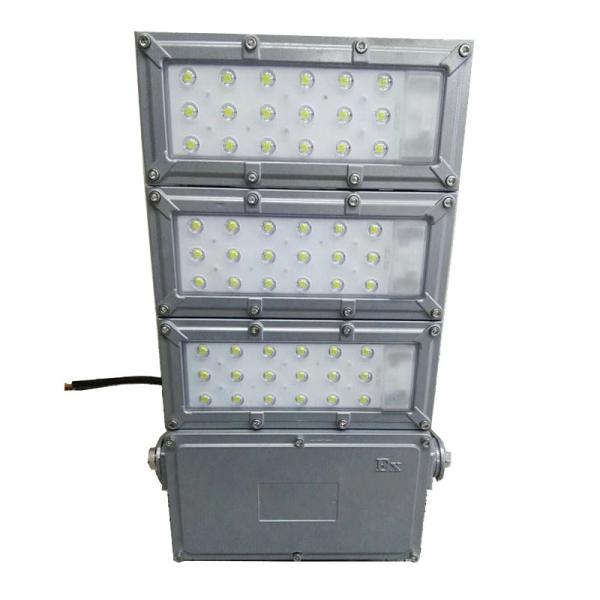

    Oil Field Explosion Proof Led Flood Light With Aluminum Housing AC220V / 50Hz

    Ask Lasest Price
    Brand Name : Vican
    Model Number : V-SBD102
    Certification : CNEX,ISO,CE,RoHS
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 5000 pieces per mongh
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Oil Field Explosion Proof Led Flood Light With Aluminum Housing AC220V / 50Hz


    explosion proof light fixture led type / hazardous location led flood lighting


    Description:


    The explosion proof LED lighting fixture with a Class I Division 1 designation will be safe for installation in an environment with flammable vapors that are frequently or periodically present in the atmosphere around the fixture. A Class I Division 2 lighting fixture will be safe for installation in areas where vaporous substances are held or transported in storage vessels but are not necessarily in the atmosphere. Group designations within each Class and Division refer to the ignition temperatures and explosive pressures of the actual flammable substances that might be released into the atmosphere. An atmosphere in which acetylene is common, for example, where acetylene welding processes are used, would have a Class I Division 1 Group A designation because of the higher ignition and explosive risks posed by acetylene. A facilities manager or designer would need to select explosion proof LED lighting with the same Class I Division 1 Group A designation to safely illuminate that environment.


    Parameter:


    Input voltage:AC220V/50Hz Luminous flux:120Lm/W
    CRI:white 5500K Bulb:Bridgelux LED
    Working temperature:-40℃~+50℃ Thread:G3/4"
    IP Rating:IP65 Anti-corrosion class:WF2
    explosion proof sign:Exd II CT6GB
    ModelsBulbRated power (W)Lumens(lm)Life time(h)Weight(KG)
    SBD151-D70LED5063001000006.4
    SBD151-D105LED6094501000006.4
    SBD151-D140LED70126001000006.4

    Applications:


    1. Can be used in hazardous areas: Zone 1 and Zone 2 .

    2. Can be used in explosive gas atmospheres of Category IIA and II B IIC where the temperature classification is T6.

    3. Two type of Ex d(IIB) and complex(IIC).

    4. Flammable dust atmosphere.

    5. Widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
