    Stainless Steel Explosion Proof Cable Gland , IP54 Metal Cable Connectors

    Ask Lasest Price
    Brand Name : Vican
    Model Number : V-BHJ-04
    Certification : CNEX,ISO,CE,RoHS
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 10000 pieces per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

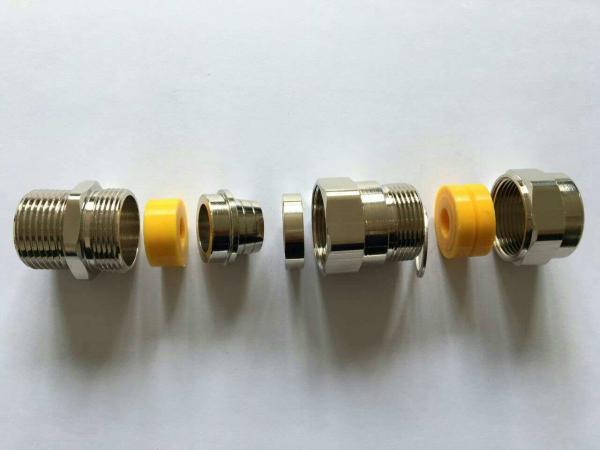

    Stainless Steel Explosion Proof Cable Gland , IP54 Metal Cable Connectors


    stainless steel explosion proof cable glands , metal cable connector


    Description:


    Cable glands with moulded plastic, aluminum, copper, stainless steel 304 material, According to the application places can be customized stainless steel 316.
    The Cable gland front-end screw thread are the metric threads, inch thread, taper inch NPT pipe, Degree ofprotection IP54.
    The drainage valve is ensure enclosure of internal and external pressure evenly, Can effectively prevent moisture from entering the enclosure and also prevent water vapor condenses from the enclosure.Using sheath can effective protection and extension the useful life of cable gland.


    THREAD SPECIFICATIONS (PITCH & MAJOR DIA.)


    NPT THREAD SPECIFICATIONS
    THREAD SIZE1/4" NPT3/8" NPT1/2" NPT3/4" NPT1" NPT1-1/4" NPT1-1/2" NPT2" NPT
    Major Dia. Inches (mm).54
    (13.72)
    .69
    (17.15)
    .84
    (21.34)
    1.05
    (26.67)
    1.32
    (33.40)
    1.66
    (42.16)
    1.90
    (48.26)
    2.38
    (60.33)
    Pitch (mm).056"
    (1.41)
    .056"
    (1.41)
    .071"
    (1.81)
    .071"
    (1.81)
    .087"
    (2.21)
    .087"
    (2.21)
    .087"
    (2.21)
    .087"
    (2.21)
    Threads per Inch1818141411.511.511.511.5

    PG THREAD SPECIFICATIONS
    THREAD SIZEPG 7*PG 9PG 11PG 13.5**PG 16PG 21PG 29PG36PG 42PG48
    Major Dia. Inches (mm).49"
    (12.5)
    .60"
    (15.2)
    .73"
    (18.6)
    .80"
    (20.4)
    .89"
    (22.5)
    1.11"
    (28.3)
    1.46"
    (37.0)
    1.85"
    (47.0)
    2.13"
    (54.0)
    2.39"
    (59.3)
    Pitch (mm).05"
    (1.27)
    .055"
    (1.41)
    .055"
    (1.51)
    .056"
    (1.41)
    .055"
    (1.51)
    .062"
    (1.59)
    .062"
    (1.59)
    .062"
    (1.59)
    .062"
    (1.59)
    .062"
    (1.59)

    METRIC THREAD SPECIFICATIONS
    THREAD SIZEM6M8M12M16M20M25M32M40M50M63
    Major Dia. Inches (mm).24"
    (6)
    .31"
    (8)
    .47"
    (12)
    .63"
    (16)
    .79"
    (20)
    .98"
    (25)
    1.26"
    (32)
    1.57"
    (40)
    1.97"
    (50)
    2.48"
    (63)
    Pitch (mm).04"
    (1.0)
    .05"
    (1.25)
    .06"
    (1.5)
    .06"
    (1.5)
    .06"
    (1.5)
    .06"
    (1.5)
    .06"
    (1.5)
    .06"
    (1.5)
    .06"
    (1.5)
    .06"
    (1.5)

    Application:


    For hazardous area, connection for explosion-proof electric equipements, chemical industry, petroleum, electricity, light industry, machinery etc, especially for installation for automation engineering circuit.
